50KW Off Grid Solar System with High-Efficiency Solar Panels and Battery Storage

Specifications

Specification	Details
System Capacity	50KW
Solar Panels	- Type: Monocrystalline <br> - Quantity: 200pcs (250W each) <br> - Total Power: 50,000W <br> - Efficiency: 18% - 20% <br> - Dimensions: 1650mm x 990mm x 35mm (approx.)
Battery Storage	- Type: Lithium Iron Phosphate (LiFePO₄) <br> - Capacity: 48V, 2500Ah (approx. 120,000Wh) <br> - Depth of Discharge (DoD): 80% <br> - Lifespan: 3,000 - 5,000 cycles <br> - Weight: Approx. 1500kg
Solar Inverter	- Type: Pure Sine Wave Inverter <br> - Power: 50KW <br> - Input Voltage: 48V <br> - Output Voltage: 220V/230V/240V (Single Phase) or 380V/400V (Three Phase) <br> - Efficiency: 90% - 95% <br> - Dimensions: 1000mm x 800mm x 400mm
Charge Controller	- Type: MPPT (Maximum Power Point Tracking) <br> - Power: 10000W <br> - Input Voltage: 12V - 48V <br> - Output Voltage: 48V <br> - Efficiency: 98%

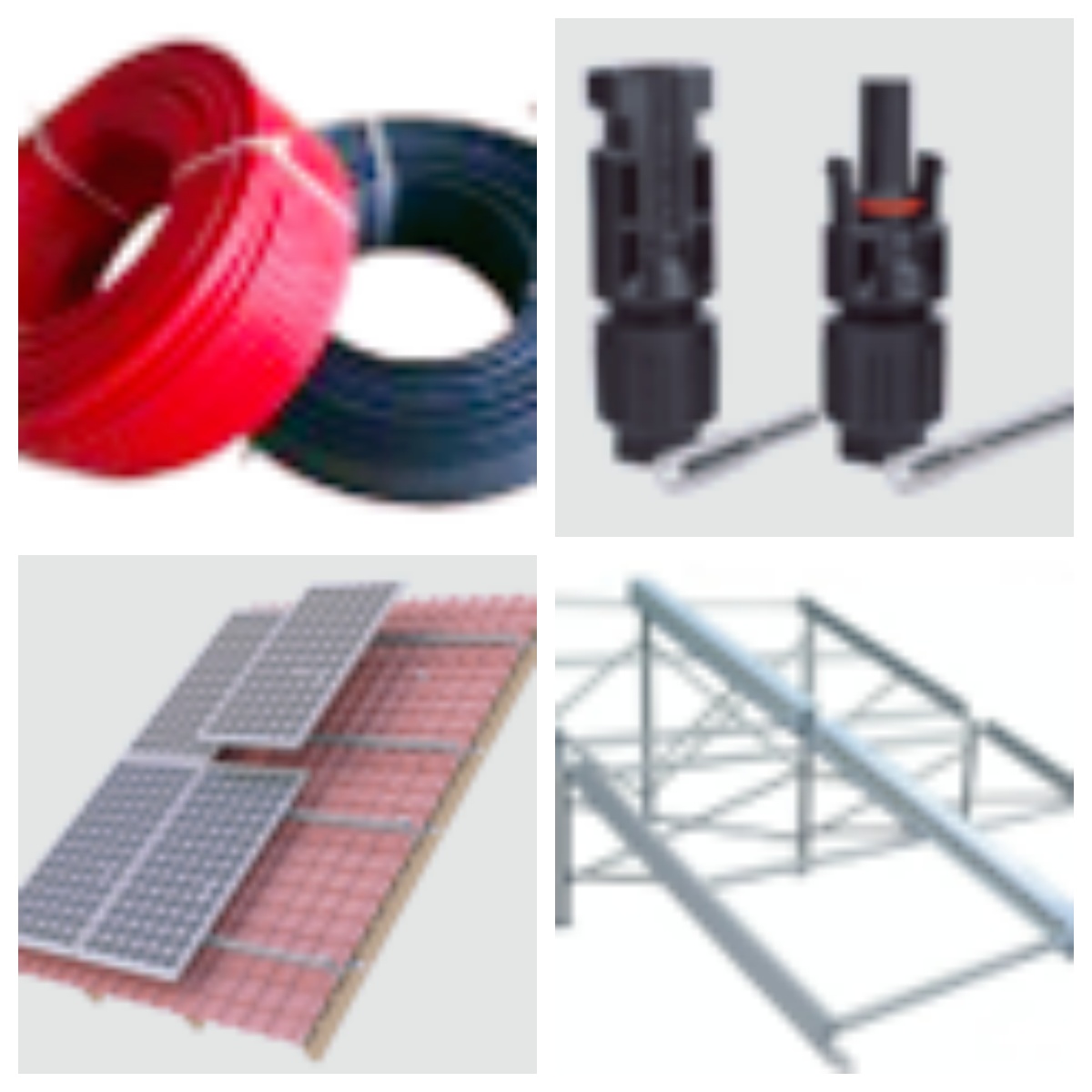

Mounting Structure	- Material: Aluminum Alloy / Stainless Steel <br> - Tilt Angle: Adjustable (10° - 60°) <br> - Wind Resistance: Up to 120km/h <br> - Dimensions: Customizable based on installation area
Cabling & Wiring	- Solar Cable: 10mm² / 16mm² (depending on distance) <br> - Battery Cable: 50mm² / 70mm² <br> - Connectors: MC4 Connectors for Solar Panels, Terminal Blocks for Inverter and Battery
System Protection	- Overcharge Protection <br> - Over-discharge Protection <br> - Short Circuit Protection <br> - Overload Protection <br> - Temperature Protection
Monitoring & Control	- Remote Monitoring (Optional): Via Smartphone App or Web Interface <br> - Real-Time Data: Power Generation, Battery Level, System Status
Operating Temperature	- Solar Panels: -40°C to 85°C <br> - Inverter: 0°C to 40°C <br> - Battery: -20°C to 50°C
System Dimensions	- Solar Panel Area: Approx. 330m² (200pcs x 1.65m x 0.99m) <br> - Inverter Dimensions: 1000mm x 800mm x 400mm <br> - Battery Cabinet: 2000mm x 1200mm x 1500mm
Weight	- Solar Panels: Approx. 20kg per panel <br> - Inverter: 80kg <br> - Battery: 1500kg (LiFePO₄)
Warranty	- Solar Panels: 10 - 25 years <br> - Inverter: 3 - 5 years <br> - Battery: 3 - 10 years (depending on type)
